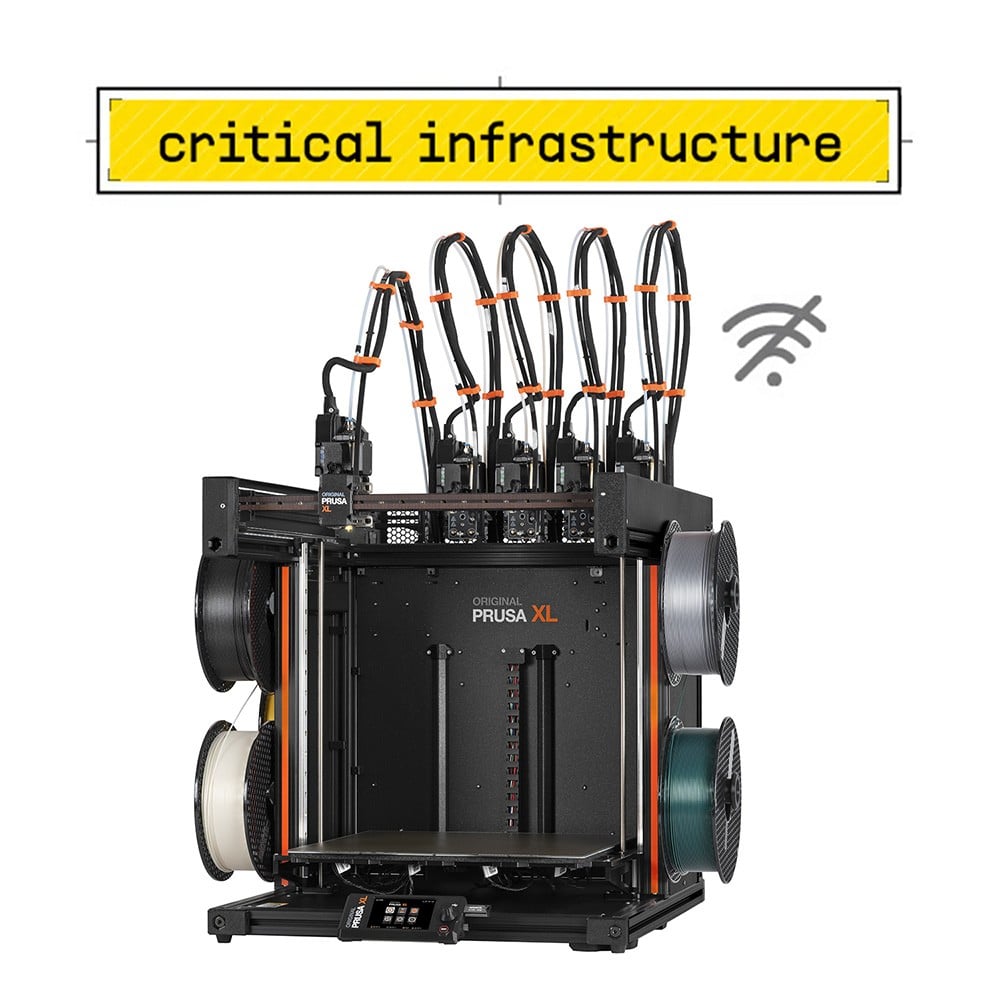

United StatesOriginal Prusa XL - 5 tool head - assembled Critical Infrastructure Edition
The Original Prusa XL is the most innovative 3D printer on the market, offering possibilities that no single-nozzle multi-material printer can replicate. With a state-of-the-art five-head tool changer, top print quality, extreme precision, huge print volume, and zero-waste printing, the Original Prusa XL establishes a new category for itself.
Featuring lightning-fast toolhead swapping, unique segmented heatbed, perfect edge-to-edge print precision, a full set of network features, support for an optional enclosure and compatibility with a wide range of technical materials, no project is too big for the Original Prusa XL. Get started quickly with useful additions such as an always-perfect first layer and one-click printing, and explore the possibilities of advanced material combinations for even the most complicated projects.
With the possibility to gradually upgrade the single-tool XL with additional toolheads and an optional enclosure, you can expand your experience as you go.
Please note you need to install the Tool Head/s and Display before use.
True Air-Gapped Mainboard
Hardware-Level Security Enforcement
This edition features a custom-manufactured mainboard. All Wi-Fi connectors and related wireless circuitry have been physically removed, not just disabled via software. This provides a true, verifiable air-gapped solution, eliminating the attack vector of a network-connected device and ensuring full functionality in a 100% offline environment.
Secure Offline Workflow
Designed for Classified Data Handling
This bundle is built for a complete offline workflow. It supports an optional certified, encrypted USB drive for secure data transfer that is compatible with the platform. The machine ships with no camera, ensuring no optical data can be captured.
Video
Features
1.75mm filaments
Not vendor-locked
Build area
360×360×360 mm
Layer height
0.10 - 0.30 mm
Toolchanger
With up to 5 heads
Dimensions
700×900×720 mm
Removable
Print sheets
0.4mm nozzle
Easy-to-swap
Open-source
Community-Friendly
Zero-Waste Printing
Getting a 3D printer is just the beginning: you will need more and more filaments and the XL is here to keep the running costs down by eliminating excessive waste! Every single-extruder printer on the market needs to purge the leftover filament from the nozzle during every color/material change. With many printers on the market, the filament waste can often be up to four times greater than the weight of the printed object itself.
The XL was designed for efficient multi-material printing with zero-to-no waste and super-fast operation. A tiny priming tower for nozzle pressure stabilization is usually present, but with properly dried filaments and wipe-to-infill options, the XL can print completely without waste! No wipe towers, no flushed filament around the printer!
Combine Materials
With the individual toolheads, you can easily load various materials and combine them easily during a single print. You can combine Flex with PETG and use PLA for easily-removable supports. If your project requires advanced and expensive materials, such as PCCF, you can use a cheaper material to print supports, reducing total costs.
Fastest Multi-Material Printer
When you want to print with multiple colors or materials, the Original Prusa XL with its lightning-fast toolchanger, Input Shaper, and Pressure Advance technologies, delivers results faster than any competition on the market and with the same premium quality as the award-winning MK4.
XL Toolchanger
The toolchanger is the cornerstone of the Original Prusa XL. Keep up to five materials loaded at all times and print multi-material objects faster than ever before. With filaments loaded into the nozzle, there are no lengthy filament change procedures. The toolchanger swaps individual heads in an instant and thanks to its streamlined mechanical design offers unparalleled reliability. You can load up to five 2kg spools on the XL and print a 10kg object without touching the printer.
Unlocking Silicone Printing
In partnership with the startup Filament2, we’re bringing a revolutionary plug-n-play toolhead to the Original Prusa XL. This new toolhead features a precision mixing nozzle designed to print with 2-part liquid materials, starting with real, heat-resistant silicone. Learn more on the Silicone Toolhead product page.
Keep on Printing with Spool Join
Spool Join is a feature that automatically switches to another spool when the current one runs out during a print. It’s perfect for both finishing partially empty spools, but you can also start massive uninterrupted prints: load up to five 2kg spools, enable Spool Join and let the printer produce a huge 10kg model without a single user intervention.
Exceptional Print Quality and Reliability
Speed is nothing without quality! The XL delivers multi-material prints much faster than any other desktop printer on the market while retaining top print quality across the entire print surface. The Nextruder delivers exceptionally good performance, especially with extremely steep overhangs up to 15°, and easily handles even flexible filaments. The superb precision of the printer ensures you can print parts that fit perfectly together.
High-Speed Printing
Speed matters when you need to finish a project on time or produce a large number of prints. The Original Prusa XL uses a native Input Shaper and Pressure Advance implementation, bringing a massive speed boost without sacrificing print quality. The XL is easily the fastest multi-material desktop printer on the market, producing beautiful complex prints in record times.
Large and Precise
Achieve unparalleled precision with the Original Prusa XL! We have tuned the print profiles so that you can design precise parts and work with 0.2mm accuracy. When you need to add a specific component, like an M3 screw, into your design, you know you can rely on the XL’s print accuracy.
Beautifully Quiet
With the Phase Stepping technology on board, the printer precisely measures its motor response characteristics and automatically adjusts the driving signal to make the XL silent. In other words: despite its speed, the XL is beautifully quiet, so you can leave it running next to your desk and continue working without being distracted by noise. And you can enable the Stealth Mode to make the XL even more silent! Watch the Phase Stepping video explanation!
Easy to Use
With automatic calibration, one-click printing and an always-perfect first layer, the XL takes care of all the tedious tasks for you. Forget adjusting the distance between the nozzle and the print bed and don’t worry about running out of material mid-print. The XL is simple to use, easy to maintain and comes with a detailed handbook that will guide you through every aspect of multi-material printing.
Perfect First Layer Out of the Box
Forget Live Adjust Z or manually adjusted screws. The XL lays down an absolutely pristine first layer across the entire bed every single time. It doesn’t matter what kind of print surface you use, the XL’s Loadcell sensor will always precisely measure the offset without being thrown off by reflective or textured surfaces. The sensor doesn’t rely on visual data, offering unparalleled precision on every kind of print sheet out there!
Tackle any type of filament
No matter whether your project requires PLA and PETG, or even ASA and carbon-filled filaments, the XL can handle them with ease - even flex! With its direct drive Nextruder, printing flexible materials is easier than ever before and you can create amazing flexible projects without breaking a sweat (or your printer). Most materials do not require an enclosed printing space, but for those that do, there’s a dedicated Original Prusa Enclosure.
Color LCD Touch Screen
Pick your favorite way to control the XL! You can either use the physical knob for tactile feedback or the ever-so-popular touchscreen panel. The color LCD provides you with easy-to-navigate menus and simple-to-follow instructions, and with features such as G-code previews, QR codes, Cancel Object functionality and many other useful improvements, using the XL is a joy!
Unique Segmented Heatbed
The XL is equipped with a modular segmented heatbed driven by a separate electronic board to push the print quality and reliability further. The heatbed consists of 16 individually controlled tiles designed to prevent heat deformation which is usually present in printers with a single large heatbed. You can always find the perfect print surface for your material with our proven double-sided print sheets with various surface textures. It can also switch off unused tiles to save energy.
Power-Loss Recovery
Large prints can easily take many hours to finish. However, you don’t need to worry about power outages. The XL features hardware-based power-loss recovery. In case of a power failure, the XL stores the last known extruder location, so when the power is restored, the machine can pick up exactly where it left off - even with network prints!
Actively Updated
We publish new updates for our printers even years after release, bringing new, often major features that transform the way you print. The MK3S+ kept receiving firmware updates for more than six years. The Original Prusa MINI received a major Input Shaper update four years after release, which doubled its print speed.
100% Privacy
We do not collect information about your prints or your printer’s surroundings. We believe that no matter whether you’re developing a new-generation space shuttle, or just printing silly things for your friends, no organization should be interested in this information. This is why our printers can be found in top companies, universities and research institutions around the world.
Our printers are primarily designed for completely offline operation with no drawbacks or limitations. You have the option to share data with our tech support and connect your printer to the Prusa Connect remote print management system, but only if you choose to do so.
Our code is open source, so you can always check that we aren’t cheating or stealing your files, even when you’re connected to the internet. See where our printers are used.
Full Ownership and Control
No Walled Garden or Vendor Locks
You own your 3D printer, not just a license to use it. This machine is free from any vendor locks. You have complete freedom to use any material from any supplier, and you can use any slicer software you choose. This open-source philosophy ensures you are never locked into a proprietary ecosystem and maintain full control over your tools and processes.
