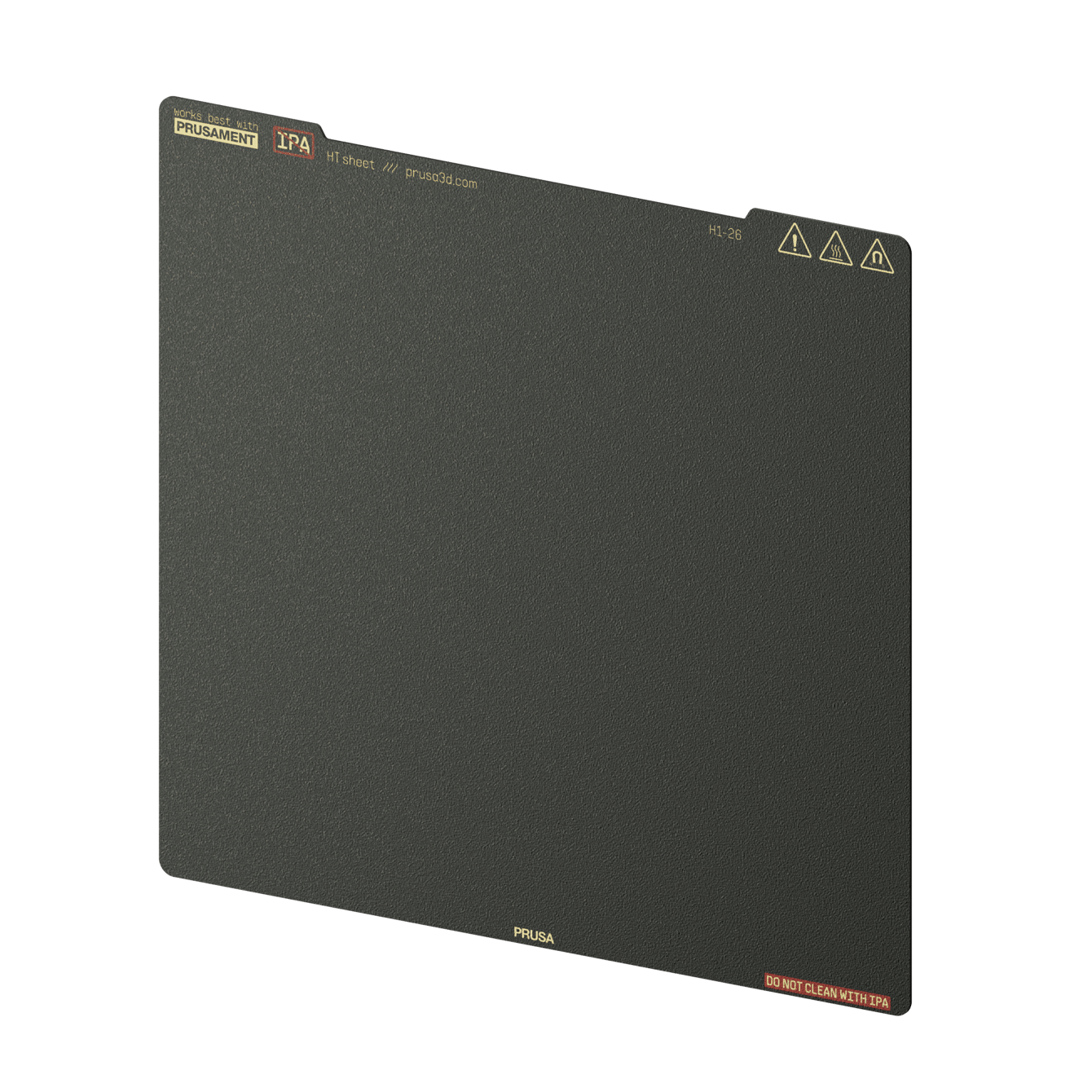

HighTemp Print Sheet
Not compatible with
HighTemp Powder‑coated Print SheetPerfect adhesion of advanced materials and longer lifespan at elevated temperatures
Unlike the regular Textured sheet, the HighTemp sheet is designed for printing with high-temperature materials. It offers good adhesion to materials like PEEK, PEEK-CF, PEI, PEKK, and PPSU, plus it resists multiple cycles at temperatures over 100 °C. However, this print sheet is not suitable for printing standard low-temperature materials, such as PLA and PETG.
Advanced materials printed at homeIndustry standard on desktop 3D printers
Industry-grade materials are expensive themselves. We lowered their 3D printing costs by making them printable on desktop 3D printers. The HighTemp print sheet is now available for CORE One+ (Gen2) and CORE One L+!

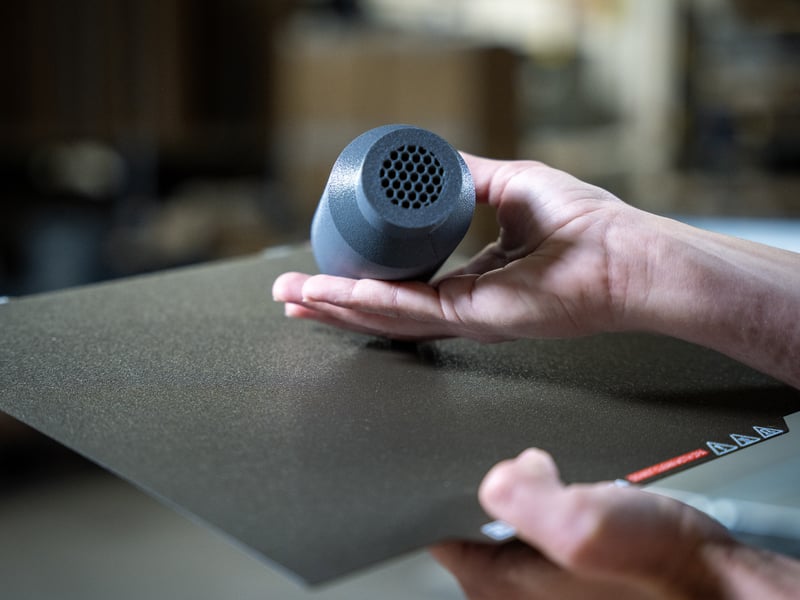

Print components with extreme chemical and heat resistance
HighTemp sheet supports printing PPS filaments filled with carbon or glass fibers. PPS offers a heat deflection temperature up to 250 °C and great mechanical resistance. It offers extreme chemical resistance and a UL94 V-0 flame-retardant rating. No known solvent can dissolve PPS at temperatures below 200 °C.

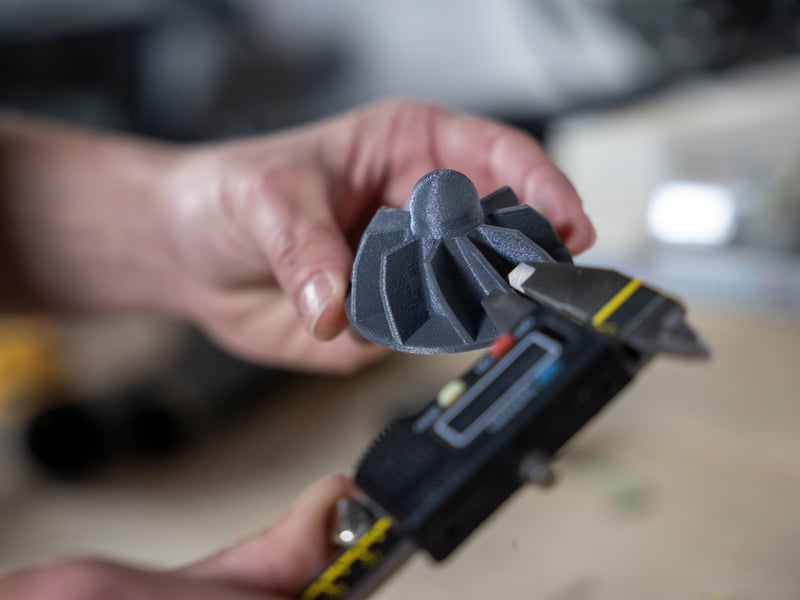

Make moving parts with maximum wear resistance
PPA Carbon Fiber is a high-performance polyamide with strong resistance to wear, heat, chemicals, and mechanical stress. It offers better dimensional stability and lower hygroscopicity than commonly used polyamides, such as PA6, PA12, and PA612.

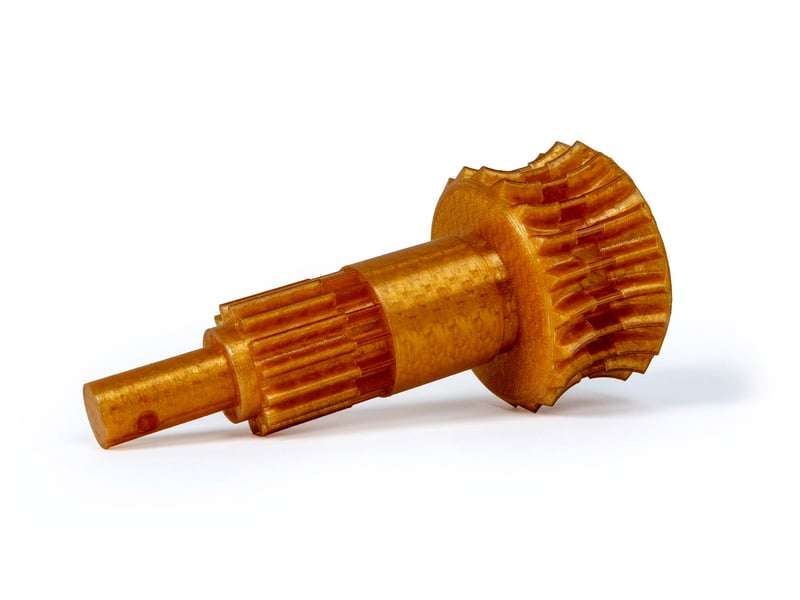

Small models from PEI, PEEK and PEKK for a fraction of their original price
The HighTemp sheet supports printing advanced materials, such as PEI, PEEK, and PEKK. These filaments usually require very high working temperatures, but the CORE One+/L 3D printers can still print small components. This makes these industry materials more accessible to everyone.
Compatible with CORE One Family
The HighTemp print sheets fit the Prusa CORE One+ (Gen2) or the Prusa CORE One L+. The CORE One L+, equipped with an HT Hotend, offers the best results through the most effective heatbed and chamber heating. The CORE One+ (Gen 2) is more affordable, with slightly longer preheat times and lower print volume.

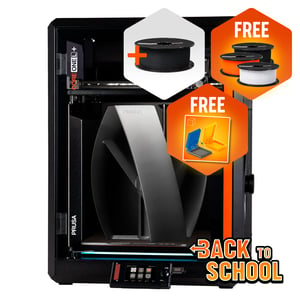

Prusa CORE One L+
Fully assembled enclosed 3D printer with fast heating and large print volume
Loading pricePrice and delivery date calculated at checkout
- Fully assembled and tested at our factory.
- Plug and print: first print minutes after unpacking.
- Large print volume
- Effective heatbed and chamber heating
Prusa CORE One+ (Gen 2)
Fully assembled, or as a kit for more affordable price
Loading pricePrice and delivery date calculated at checkout
- Fully enclosed desktop 3D printer
- Affordable price
- Available also as a kit
Basic Attributes
- Suitable for printing high-temperature materials
- Longer lifespan at elevated temperatures
- Can be washed only with dish soap and water
- Transfers texture to prints
- Some materials may require a separation layer (Magigoo HT)
- Unsuitable for low-temperature materials, such as PLA and PETG
- Gets damaged when cleaned with alcohol-based solvents

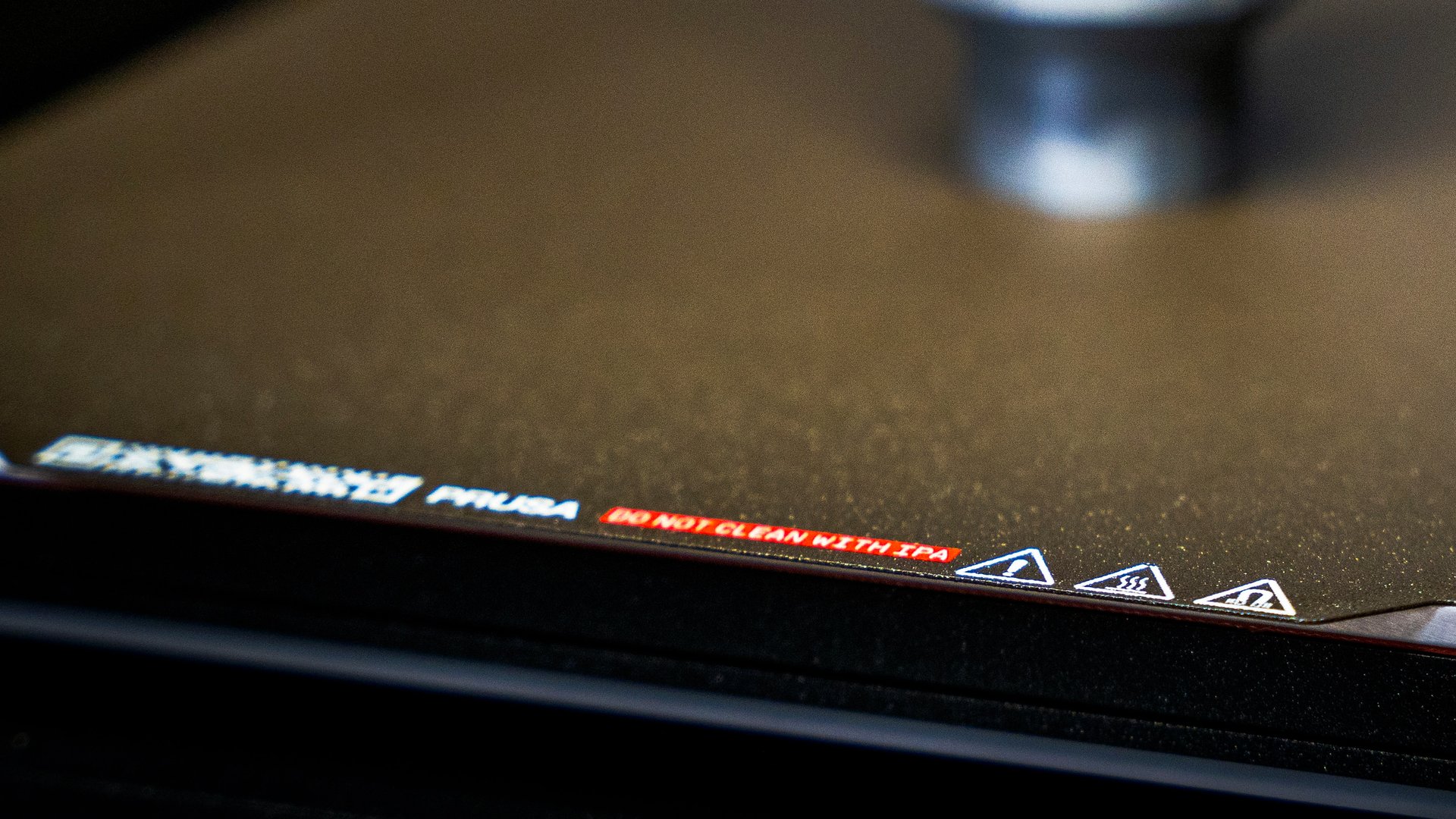

Easy washing with dish soapDon't clean this sheet with isopropyl alcohol!
Never clean the HighTemp print sheet with IPA, acetone, or any other alcohol-based solvents! Doing so will damage the surface. For good adhesion properties and easy print removal, clean the print surface with dish soap and water before every printing. After printing, let the prints cool down inside the printer to avoid introducing thermal stress.
Technical parameters
3D printer compatibilityAll Prusa CORE One series 3D printers equipped with HT Hotend
Material compatibility (CORE One series 3D printers with HT Hotend)PPS Carbon Fiber, PPS Glass Fiber, PEKK Carbon Fiber, PES, PSU
Dimensions254 × 241 mm (CORE One) / 305 × 310 mm (CORE One L)
Suitable cleaning solventDish soap with water
Full list of supported materials
The number of compatible materials is significantly wider on 3D printers with high chamber temperatures. If the sheet fits your custom high-temperature printer, you can use it for the following materials:
- PEEK, PEEK-CF, PEEK-GF
- PEI1010, PEI 9085, PEI-CF
- PEKK, PEKK-CF
- PES
- PPSU
- PSU
Warranty note
Consumable parts, such as print sheets (smooth, textured, etc.) are not covered by warranty as the coatings are designed to diminish over time unless failure has occurred due to a defect in materials or workmanship. Cosmetic damage, including but not limited to scratches, dents, cracks, or other cosmetic damage, is also not covered by the warranty. This includes dots caused by probing during the mesh bed leveling process, visible purge line, and local surface damage caused by applying an insufficient amount of Magigoo HT. Only defective sheets on arrival are covered by warranty.

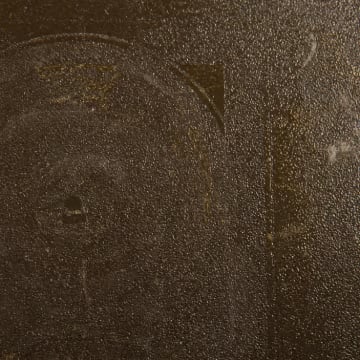

Local surface damage

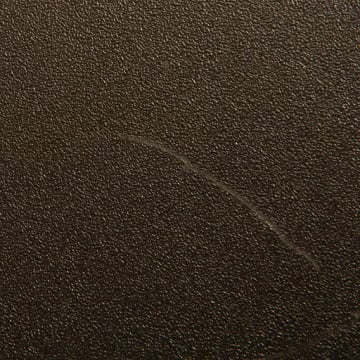

Scratched surface

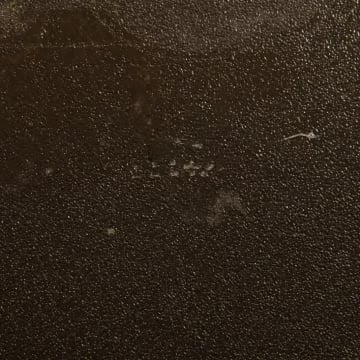

Visible dots caused by probing
