Heatbed MK52 24V - xBuddy replacement set
Not compatible with

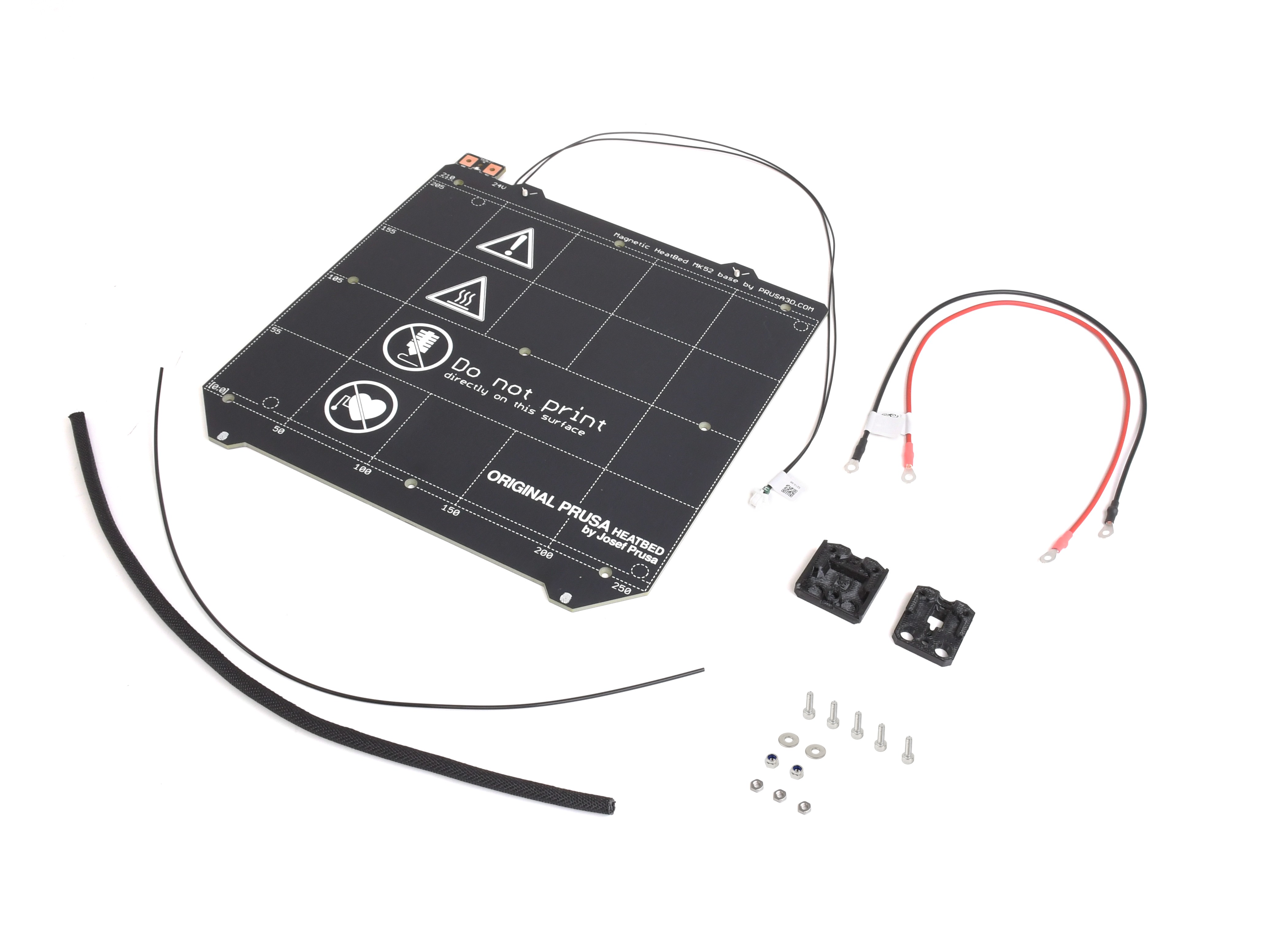

This product includes:
- Heatbed MK52 24V (1 pc)
- Heatbed wiring - black (1 pc)
- Heatbed wiring - red (1 pc)
- heatbed-cable-cover-top (1 pc)
- heatbed-cable-cover-bottom (1 pc)
- Textile sleeve 5x350 mm (1 pc)
- Nylon 2x380 mm (1 pc)
- M3x10 screw (5 pcs)
- M3n nut (3 pcs)
- M3nN nut (2 pcs)
- M3w washer (2 pcs)
- Heatbed thermistor set (1 pc)
Specifications:
- Height: 264.4 mm
- Width: 254 mm
- Thickness: ~3.175 mm
- Maximum working temperature: 120°C
- Maximum recommended temperature: 110°C
- Voltage: 24V
- Current: 6.25A
- Magnets: 45SH Neodym block magnet (28 pcs), attached by Loctite HY 4090
To correctly install this replacement part, visit our knowledge base at help.prusa3d.com, select your specific printer model, and follow the instructions provided in the repair manual.
